Big Capacity 3Ton Tube Ice Maker Machine for Ice Plant

Big Capacity 3Ton Tube Ice Maker Machine for Ice Plant

Introduction

Introduction

Product Description

product big capacity 3ton tube ice maker machine for ice plant-1

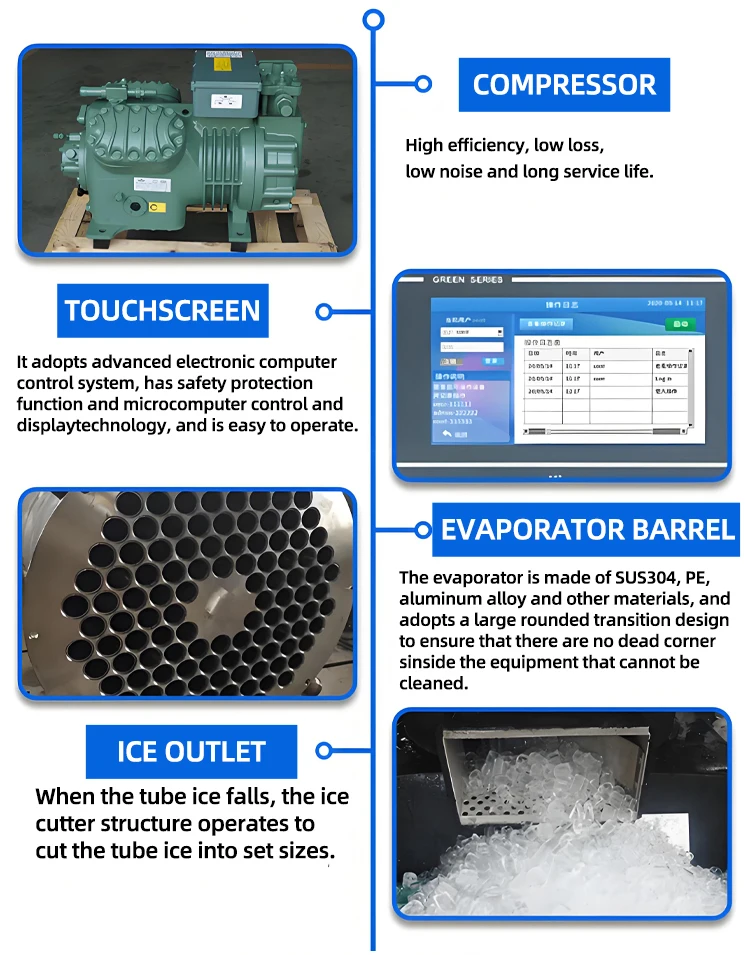

A tube ice machine comprises a tube ice evaporator, liquid receiver, vapor collector valve, electric control cabinet, various valves, and connecting pipelines. During the ice-making process, the refrigerant evaporates within the main unit, absorbing heat from the water flowing down along the inner walls of the heat exchange tubes from the upper water tank. The water freezes into ice adhering to the inner tube surface. When the ice thickness meets the specified requirement, the defrosting process is initiated to release the ice.

Specification

Model	Ice making capacity (ton/day)	Cooling capacity	Rated power	Compressor power
ISN-TB10	1	6	4.6	6
ISN-TB20	2	12	9.8	10
ISN-TB30	3	18	15.2	15
ISN-TB50	5	30	22.6	25
ISN-TB100	10	60	33	50
ISN-TB150	15	90	57.6	75
ISN-TB200	20	120	77.2	100

product big capacity 3ton tube ice maker machine for ice plant-2

product big capacity 3ton tube ice maker machine for ice plant-3

product big capacity 3ton tube ice maker machine for ice plant-4

product big capacity 3ton tube ice maker machine for ice plant-5

product big capacity 3ton tube ice maker machine for ice plant-6

product big capacity 3ton tube ice maker machine for ice plant-7

product big capacity 3ton tube ice maker machine for ice plant-8

Company Profile

BH Building Co..LTD, as the direct export business company of Harbin Dongan Building Panel Co. Ltd. hasbeen deeply involved in the export business of refrigeration equipment, cold storage steel structures, coldstorage doors, cold storage panels, color steel profiled plates and other products since its establishment.Adhering to the deep heritage and excellent quality of our parent company, Harbin Dongan Building PanelCo., Ltd., we provide full-chain services from design, material selection, construction to post-maintenanceespecially in the fields of customized cold storage engineering and steel structure engineering. We havedeep experience and advanced technical support.

product big capacity 3ton tube ice maker machine for ice plant-9

product big capacity 3ton tube ice maker machine for ice plant-10

Packing & Delivery

1.Packing type:Carton and wooden case,also be packged according to customer requirements

2.Modes of transportation:by sea,by air or land transportaion,of course,a small amount can also byExpress.

product big capacity 3ton tube ice maker machine for ice plant-11

product big capacity 3ton tube ice maker machine for ice plant-12

Cetifications

product big capacity 3ton tube ice maker machine for ice plant-13

product big capacity 3ton tube ice maker machine for ice plant-14

product big capacity 3ton tube ice maker machine for ice plant-15

product big capacity 3ton tube ice maker machine for ice plant-16

product big capacity 3ton tube ice maker machine for ice plant-17

FAQ

Q1. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'l show you the photos of the products and packages before you pay the balance.

B:30% deposite,70% L/C at sight . C:100% L/C at sight from worth-trusted bank.

Q2. What is your terms of delivery? A: EXW. FOB, CFR, CIF.

Q3.How about your delivery time? A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery timedepends on the items and the quantity of your order.

Q4. Can you produce according to the samples? A: Yes, we can produce by your samples or technical drawings.

Q5. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the couriercost.

Q6. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery.
