Industru Maker Ice Block Machine 2Ton Industrial Ice Block Making Machine

Industru Maker Ice Block Machine 2Ton Industrial Ice Block Making Machine

Introduction

Introduction

Product Description

product industru maker ice block machine 2ton industrial ice block making machine-1

product industru maker ice block machine 2ton industrial ice block making machine-2

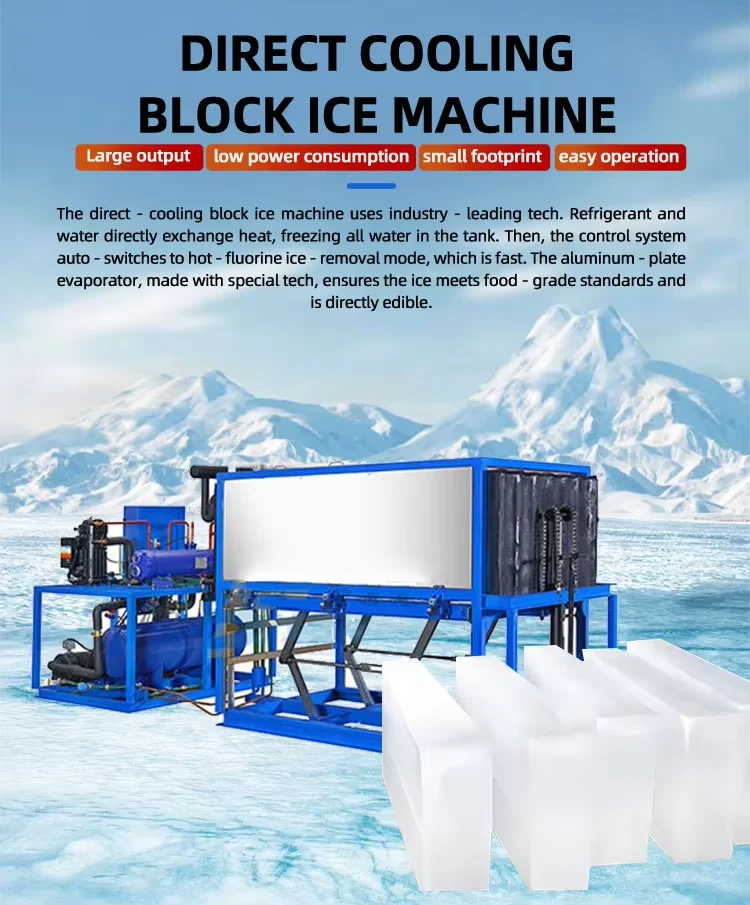

The direct - cooling block ice machine uses industry - leading tech. Refrigerant andwater directly exchange heat, freezing all water in the tank. Then, the control systemauto - switches to hot - fluorine ice - removal mode, which is fast. The aluminum -plateevaporator, made with special tech, ensures the ice meets food - grade standards andis directly edible.

product industru maker ice block machine 2ton industrial ice block making machine-3

product industru maker ice block machine 2ton industrial ice block making machine-4

Product Paramenters

Direct Cooling lce Block Machine Technique Parameter
Model	Ice production capacity (Ton/24H)	Refrigeration capacity (kw)	Rated power (kw)	compressor power (HP)	Ice weight (kg)	ce removal method
ISN-ZK10	1	7.5	6	6	25/50	Hand fork lifter
ISN-ZK20	2	15.6	10	10	25/50	Hand fork lifter
ISN-ZK30	3	22.4	14	15	25/50	Hand fork lifter
ISN-ZK50	5	43.3	19	25	25/50	ift mechanism
ISN-ZK100	10	86.6	40	50	25/50	lift mechanism
ISN-ZK150	15	118.2	60	80	25/50	ift mechanism
ISN-ZK200	20	155.7	71	100	25/50	ift mechanism
ISN-ZK250	25	199.2	89	120	25/50	lift mechanism

* Note：
Due to factors such as differences in local voltage and hertz, as well as fluctuations in market prices, the selling price may vary. Please note that theactual selling price shall be subject to the information obtained through communication with our customer service.

Product Detail

product industru maker ice block machine 2ton industrial ice block making machine-5

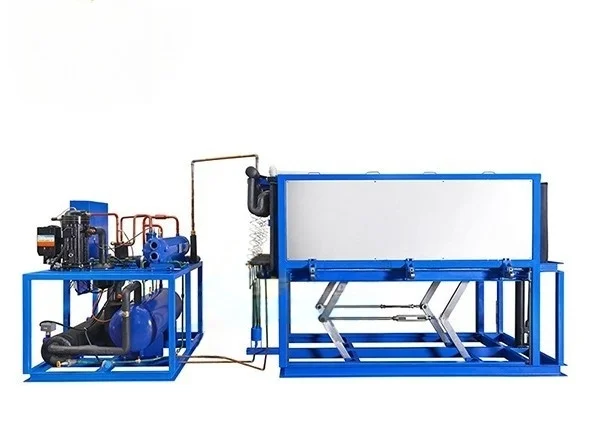

Model: ISN-ZK20

01. Ice Production: 2Ton/24H

02. Ice Size: 25Kg

03. Ice Making Cycle: 4Hours

04. Standard Ambient Temp: 22-25℃

05. Standard Water Feed Temp: 15-17℃

06. Compressor Type:Bitzer

07. Refrigerant: R404a /R22

08. Condenser:Water Cooling

09. Power Supply: 3P/380V-420V/50Hz/60Hz
10. General Power: 10KW

product industru maker ice block machine 2ton industrial ice block making machine-6

product industru maker ice block machine 2ton industrial ice block making machine-7

product industru maker ice block machine 2ton industrial ice block making machine-8

product industru maker ice block machine 2ton industrial ice block making machine-9

Direct Cooling lce Block Machine Features

1. It adopts time and temperature timer control, automatic water replenishment and automatic de-icing.

2. Large output and fast freezing time.

3. It occupies a small area and can be flexibly moved.

4. Safe operation, low risk, low cost.

5. Ice cubes are clean and hygienic and can be eaten directly.

6. No chemicals required, just evaporates directly.

7.Material: The ice mold is made of aluminum plate, and the ice making cycle is short.

Specification

product industru maker ice block machine 2ton industrial ice block making machine-10

product industru maker ice block machine 2ton industrial ice block making machine-11

Certifications

product industru maker ice block machine 2ton industrial ice block making machine-12

product industru maker ice block machine 2ton industrial ice block making machine-13

product industru maker ice block machine 2ton industrial ice block making machine-14

product industru maker ice block machine 2ton industrial ice block making machine-16
